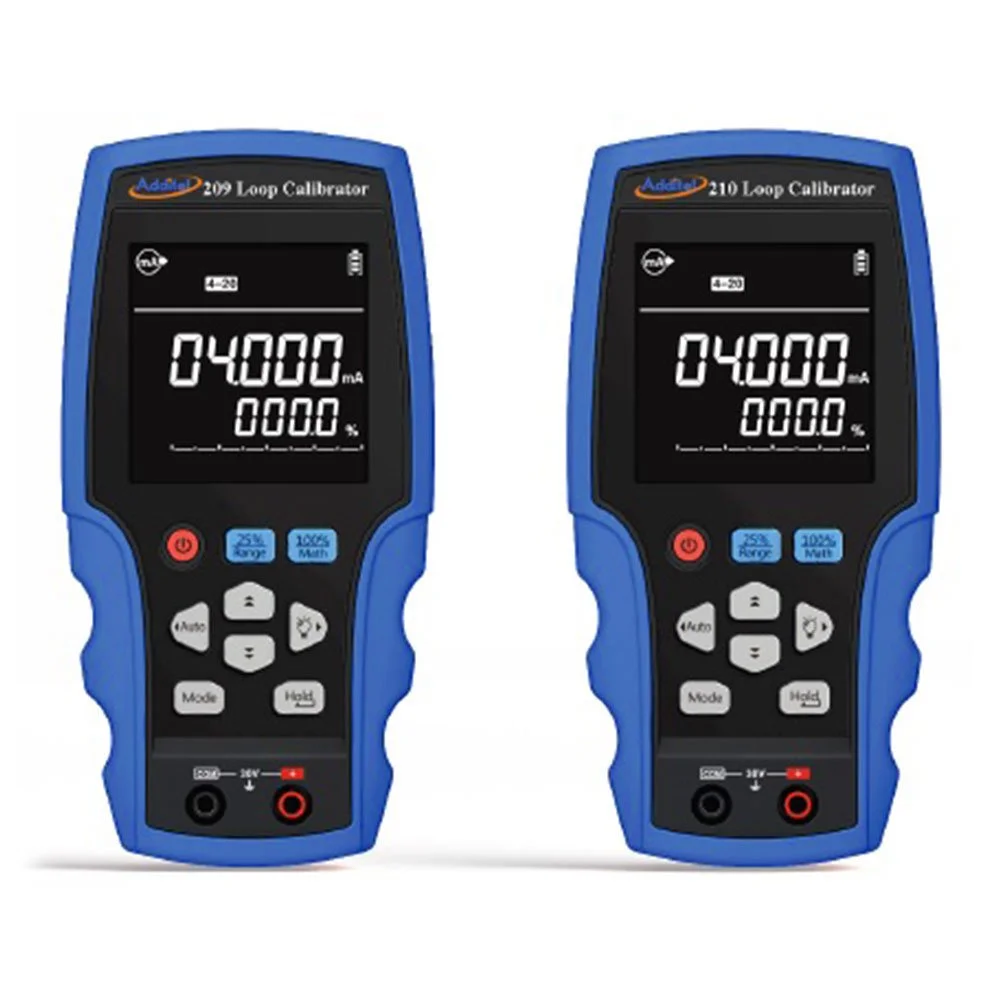

Additel 209 Loop Calibrator
0.03% of reading accuracy
Measure, source, or simulate loop current
Measure DC volts
Simultaneous mA and percent of span display
Switch functionality
Selectable ramp and step functions
HART 250 ohm resistor in series with 24V loop
ISO 17025 accredited calibration with data included
Overview
The Additel 209 is built for troubleshooting process loops. It measures current, voltage, and switches, and can source or simulate mA signals and transmitters. Zero and span values, auto ramp, and auto step are each a button press away, and the large display shows the reading alongside percent of span so loop checks go quickly. The built-in 250 ohm HART resistor sits in series with the 24V loop supply, so a HART communicator can connect without extra hardware. For tighter work, the companion ADT210 offers 0.01% of reading accuracy.
Part Number: ADT209.
Accessories
Test lead set
Alligator clips
9V Alkaline battery
