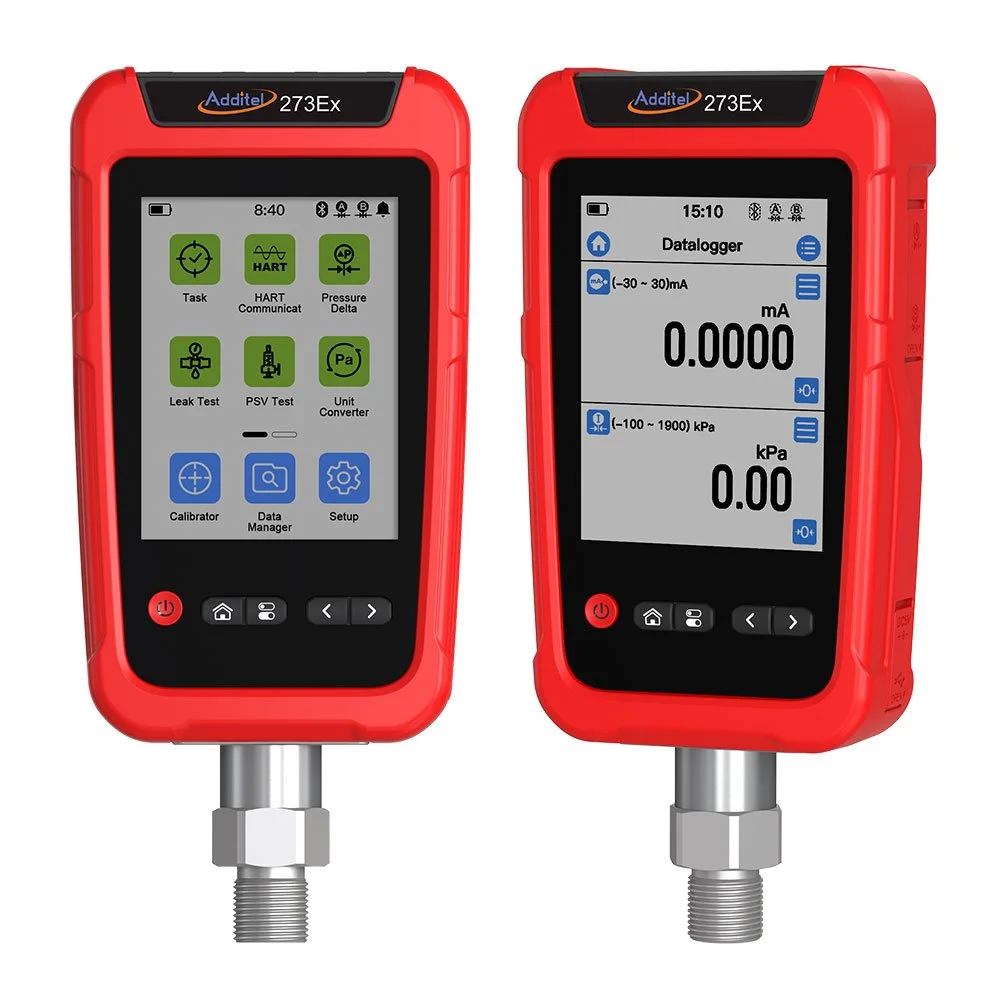

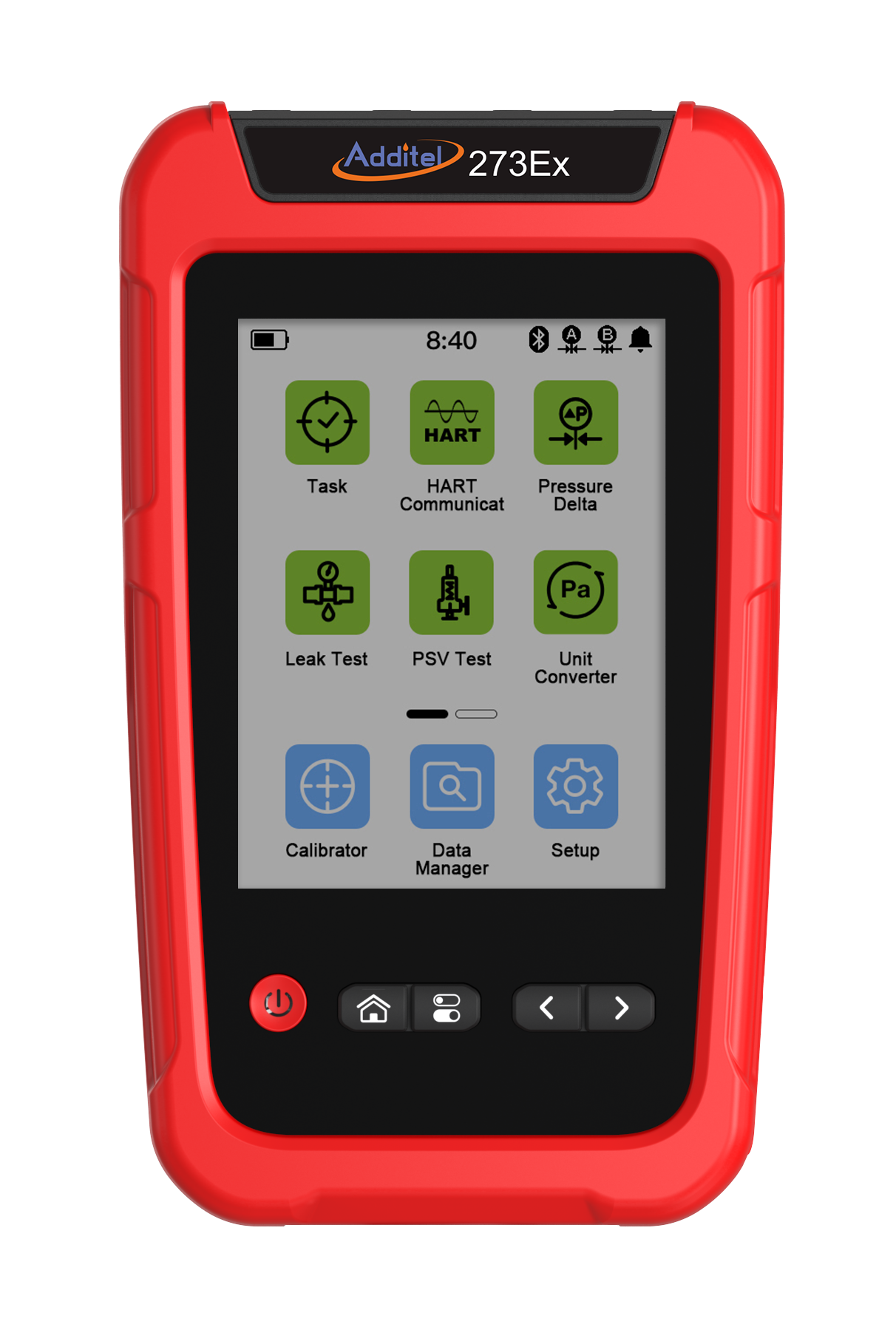

Additel 273EX Handheld Pressure Calibrator - Barometric
0.02% and 0.05% FS accuracy options
Intrinsically safe: field switchable pressure module
Dual digital pressure module inputs
ATEX, IECEx, CSA, and UKCA certified, Ex ia IIC T4 Ga
Color touchscreen with smartphone-style interface
Built-in quick test tasks and barometer
Measures mA and voltage, supplies loop power
Optional HART communication

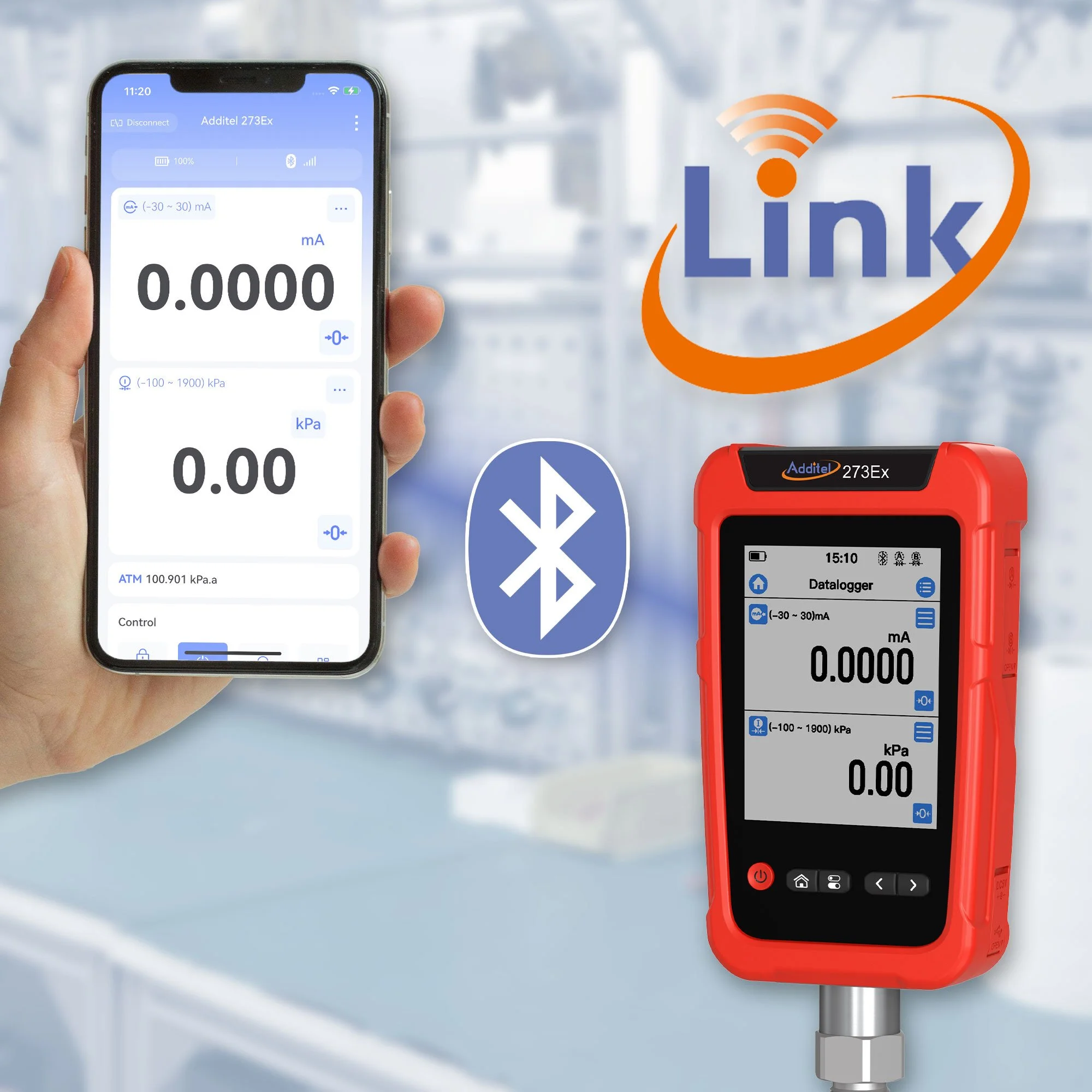

Bluetooth and USB, data logging, rechargeable battery
Transflective display readable in direct sunlight
Overview
The Additel 273Ex brings touchscreen pressure calibration into hazardous areas. Certified Ex ia IIC T4 Ga, it works in potentially explosive gas environments such as oil and gas platforms, refineries, chemical and petrochemical plants, and pharmaceutical facilities. Three pressure module inputs, one switchable ADT158Ex module at the base and two digital inputs on the side, let a technician configure the instrument to the job and cover a wide range with one handheld.
The built-in barometric sensor handles gauge and absolute measurement, and quick test tasks speed up routine checks. With optional HART support, the 273Ex measures pressure, reads a transmitter's mA or mV output, and supplies loop power during calibration, covering transmitter work with a single intrinsically safe device.
Available configurations. Range: BP. Process Connection: 1/4 BSP, 1/2 BSP, M20x1.5, 1/4 NPT, 1/2 NPT. HART Communication: Without HART, With HART.
Base model ADT273EX. Each configuration has its own Additel part number, shown as the SKU on your order.
Accessories (included)
1 110V/220V external power adapter
1 Chargeable Li-ion battery
1 Test leads set (3 pcs)
1 Hanging strap with magnet
ISO 17025 accredited calibration certificate
