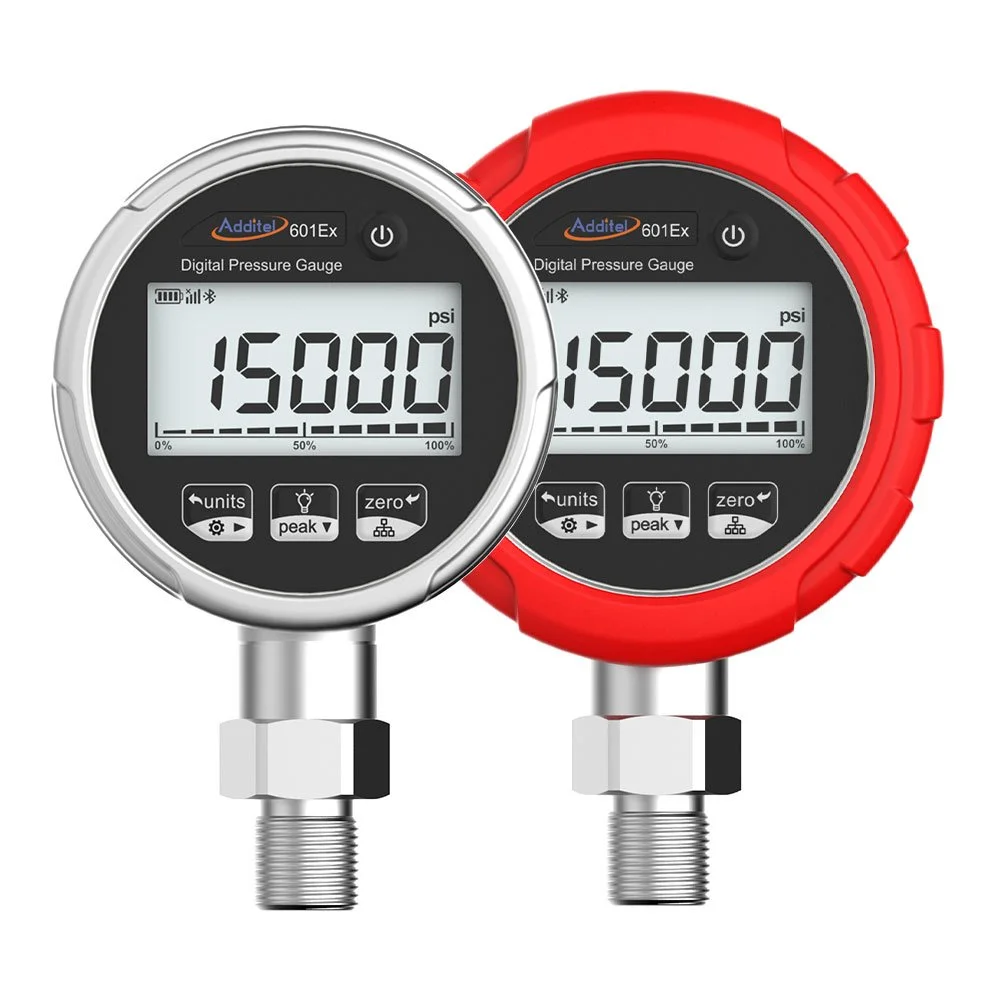

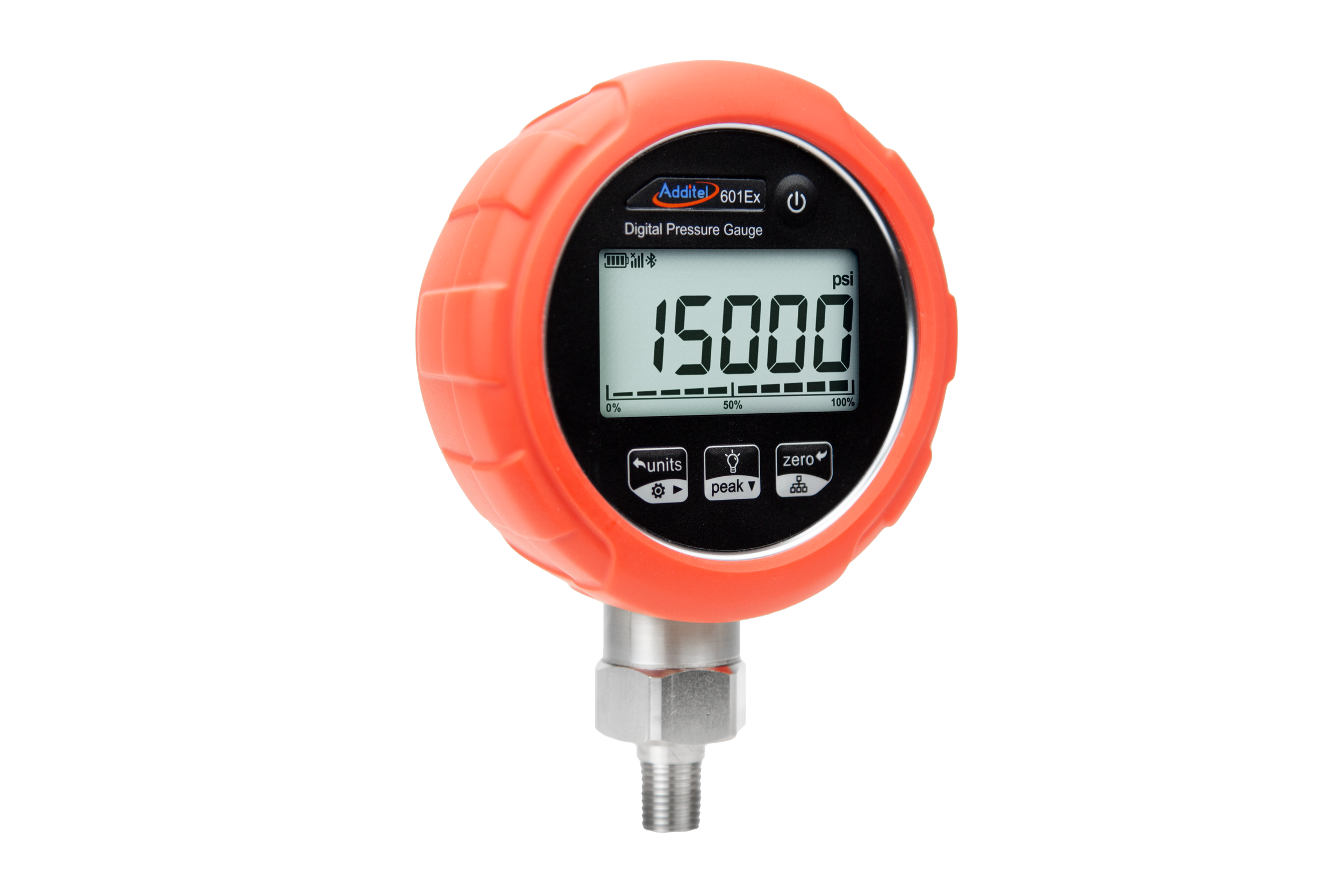

Additel 601Ex Intrinsically Safe Digital Pressure Gauge
Pressure ranges from -15 psi (-1 bar) to 15,000 psi (1,000 bar)
0.5% FS accuracy, fully temperature compensated from -20°C to 50°C
ATEX and IECEx certified intrinsically safe, Ex ia IIC T4 Ga
Bluetooth communication for remote monitoring from a phone
Stainless steel case with fully welded sensor, IP67 rated
Battery life up to 9,000 hours
Overview
The Additel 601Ex replaces a traditional dial gauge with a reliable digital reading at an economical price. It is built for field use: the display stays readable in bright sunlight, a one-touch backlight covers dark conditions, and the pressure value can be shown in large digits legible from several meters away. A pressure trend bar gives a quick read on which way the process is moving.
The 601Ex carries ATEX and IECEx intrinsic safety certification (Ex ia IIC T4 Ga), making it suitable for potentially explosive gas environments such as oil and gas platforms, refineries, chemical and petrochemical plants, and pharmaceutical facilities.
Durability comes from a stainless steel shell, a welded silicon piezoresistive sensor, a 1 meter drop rating, shock and vibration resistance, and 3X overpressure protection. The membrane buttons wipe clean, and the extended battery life keeps maintenance minimal.
Available configurations. 32 pressure ranges. Process Connection: 1/4 BSP, 1/2 BSP, M20x1.5, 1/4 NPT, 1/2 NPT.
Base model ADT601EX. Each configuration has its own Additel part number, shown as the SKU on your order.
Accessories
AA alkaline batteries (3 pcs)
Certificate of conformity (no data)
