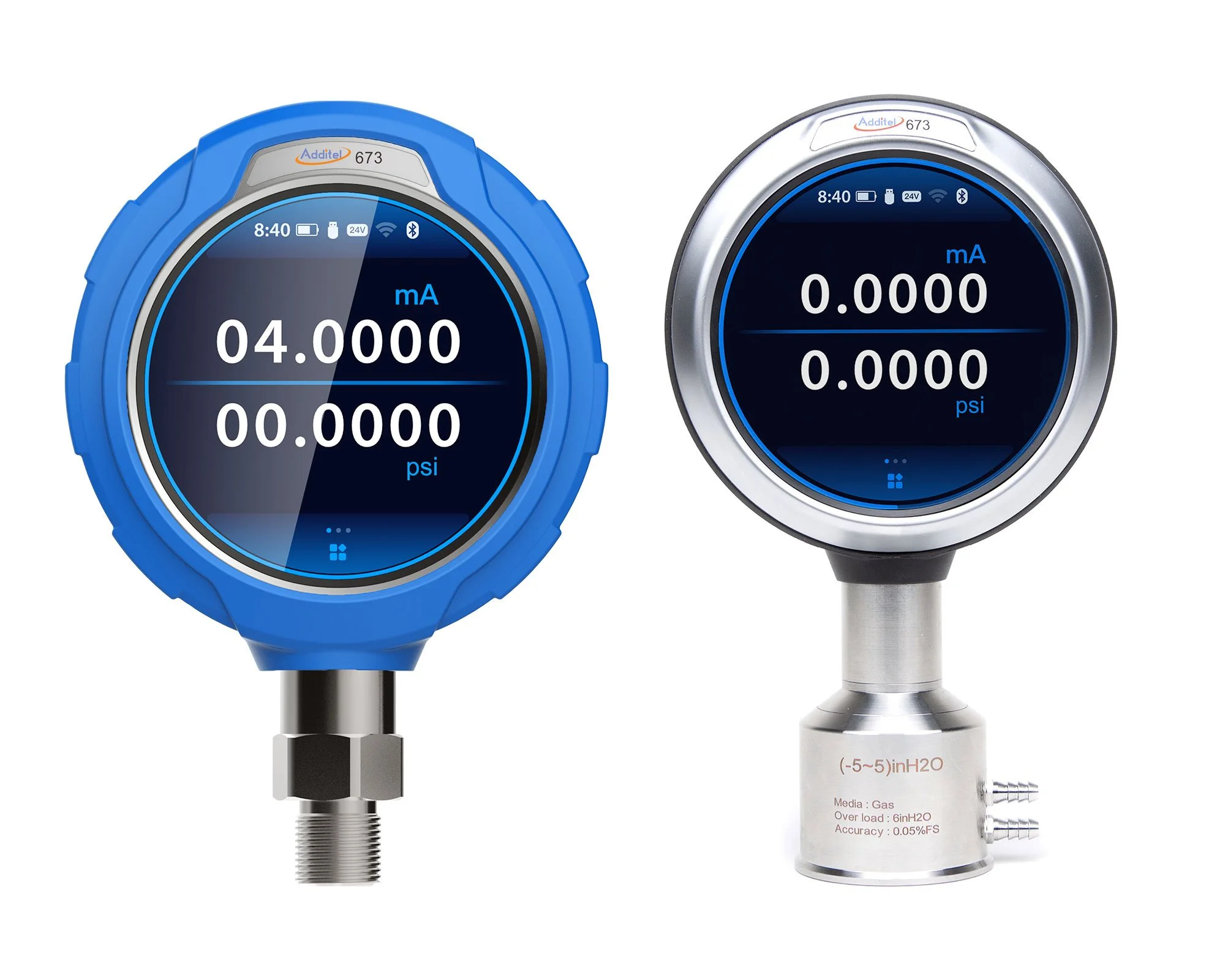

Additel 673 Advanced Digital Pressure Calibrator
Pressure ranges up to 60,000 psi (4,200 bar)
0.02% FS, 0.05% FS, or 0.1% RD accuracy
Color touchscreen display with replaceable tempered glass
Every model measures gauge or absolute pressure, with a built-in barometer
Measures mA or V and supplies 24V loop power
Full HART field communicator (optional)

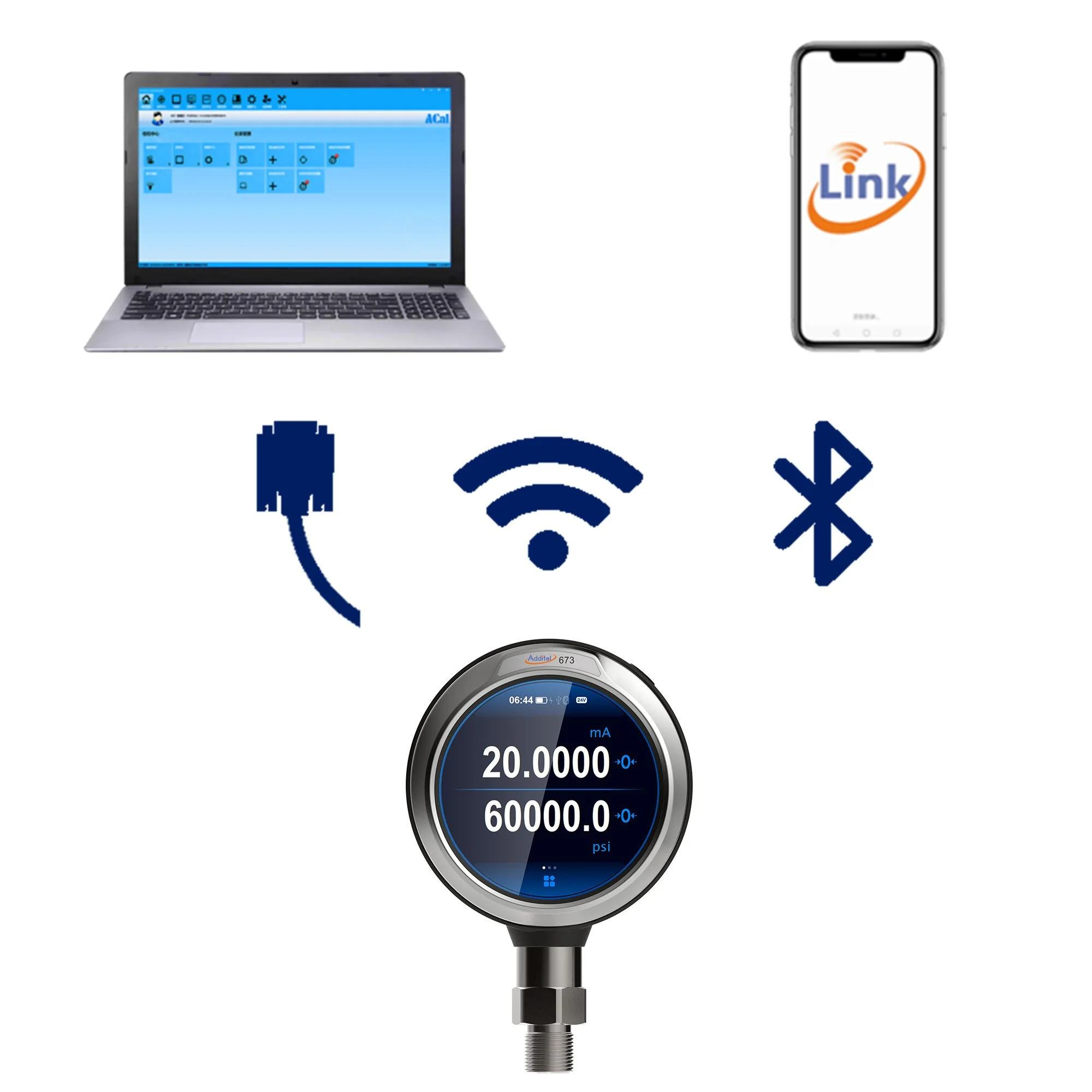

Bluetooth and USB communication, with optional Wi-Fi
Data logging and remote monitoring through the Additel Link mobile app
IP67 rated for field or laboratory use
ISO 17025 accredited calibration with data included
Overview
The Additel 673 series combines silicon pressure sensor technology, onboard storage, and wireless remote connectivity in a fully temperature compensated calibrator built for both field and laboratory work. The 3.4 inch color touchscreen replaces the traditional push button interface with a menu structure that handles like a smartphone, making setup and daily calibration work fast to learn and quick to run.
With full support for HART communication, the 673 calibrates transmitters across a wide pressure range. It measures pressure with its internal sensor, reads the current or mV output of the device under test, and supplies loop power to the transmitter during calibration, covering the whole job with one instrument. The Additel Link app adds remote monitoring from a phone or tablet.
Each unit ships with an ISO 17025 accredited calibration certificate with data.
Available configurations. Accuracy: 0.05% FS, 0.02% FS, 0.1% RD. Process Connection: 1/4 BSP, 1/2 BSP, M20x1.5, 1/4 NPT, 1/2 NPT. Communication: RS-232 + HART, RS-232, Wi-Fi + HART, Wi-Fi, HART, Standard.
Base model ADT673. Each configuration has its own Additel part number, shown as the SKU on your order.
Accessories

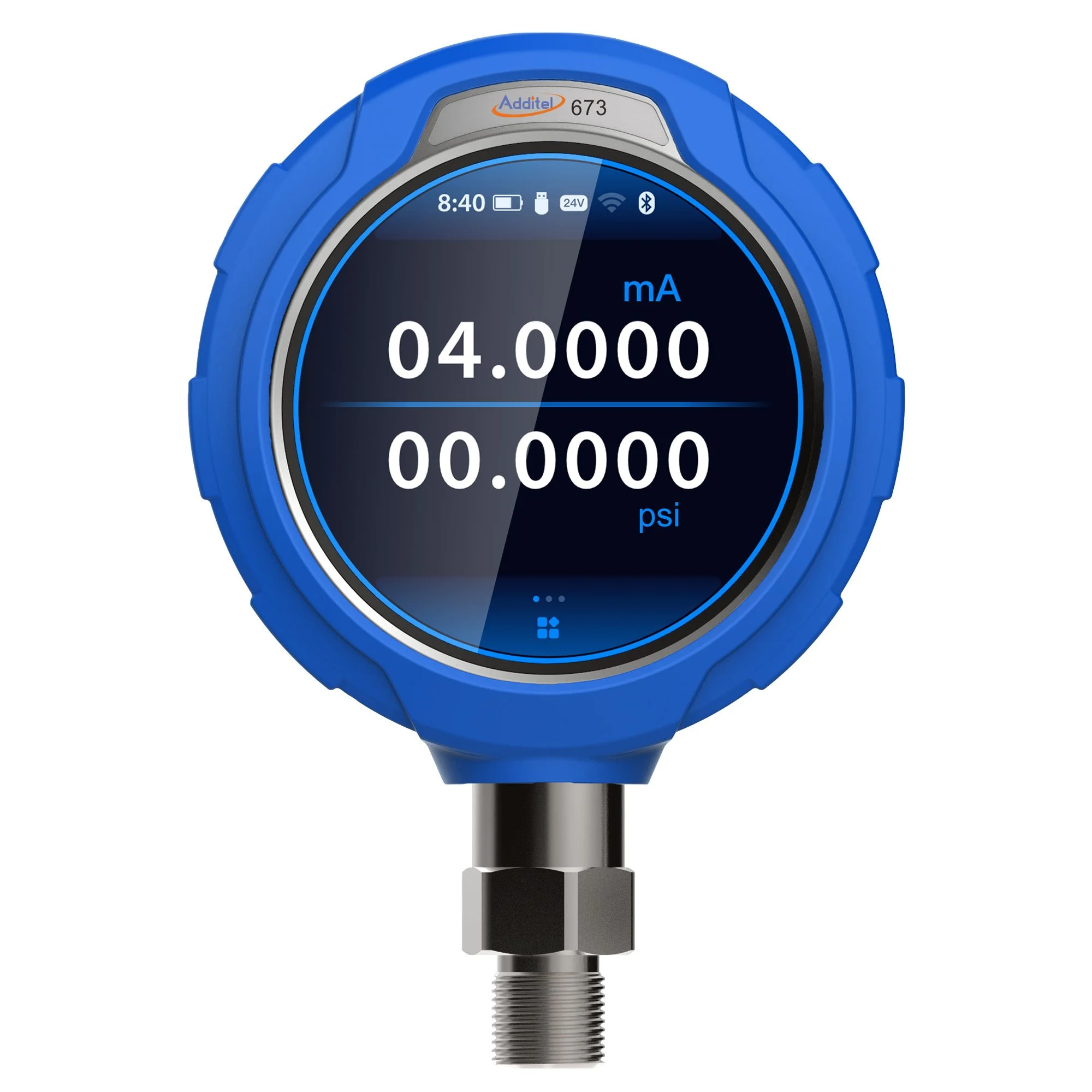

Rubber boot
Test leads
Rechargeable Lion battery
USB cable (type-C)
Power adapter
Silicone tube
ISO 17025 accredited calibration certificate
