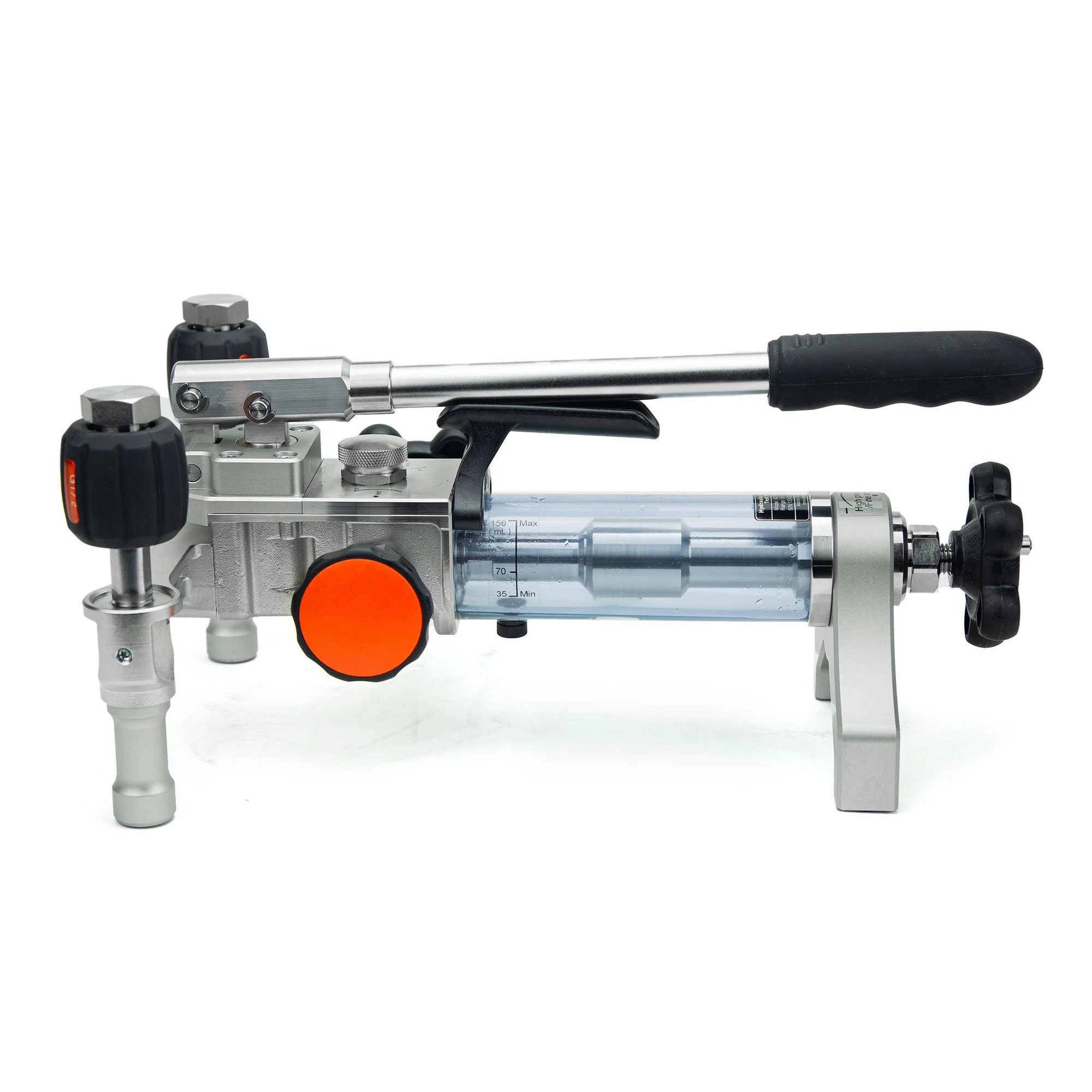

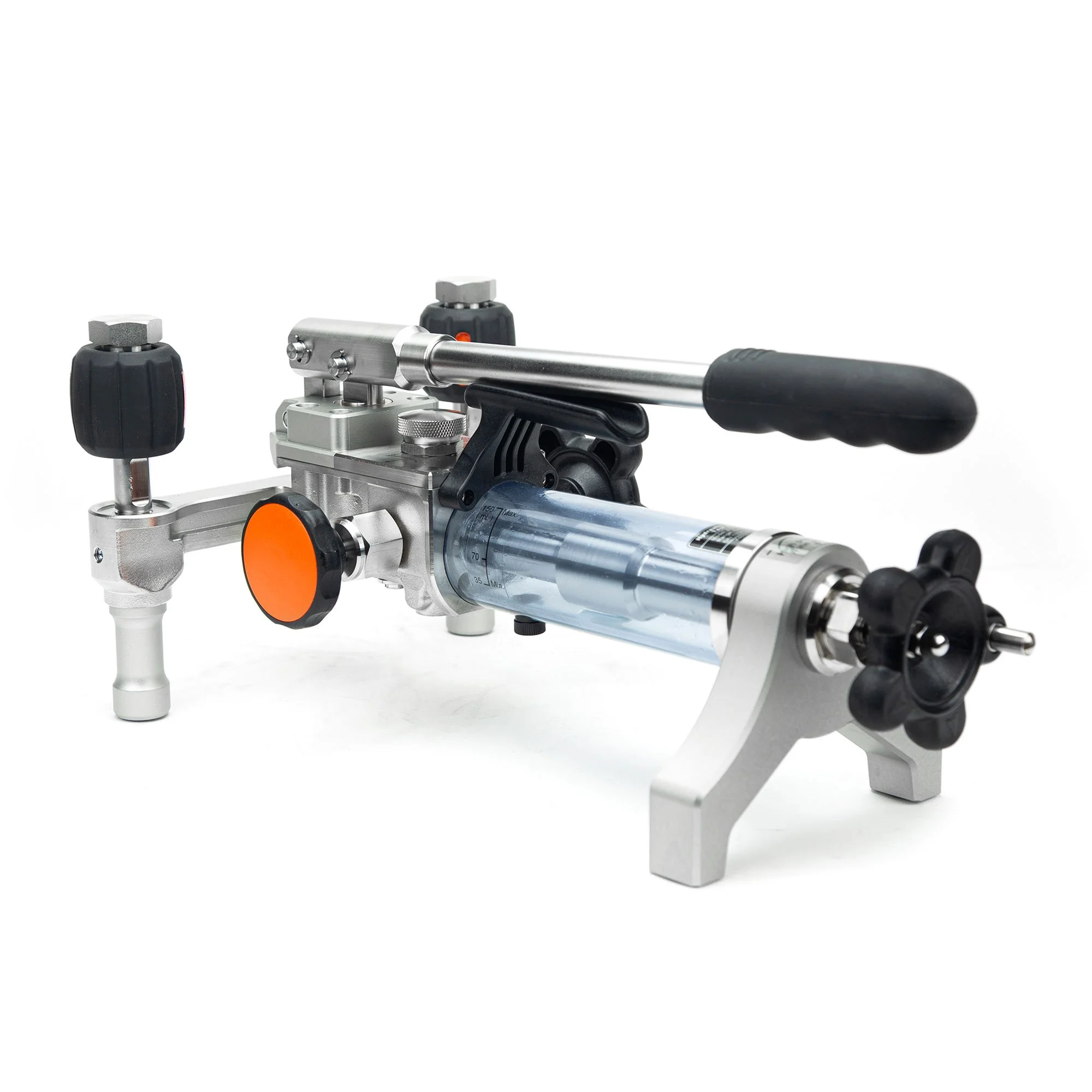

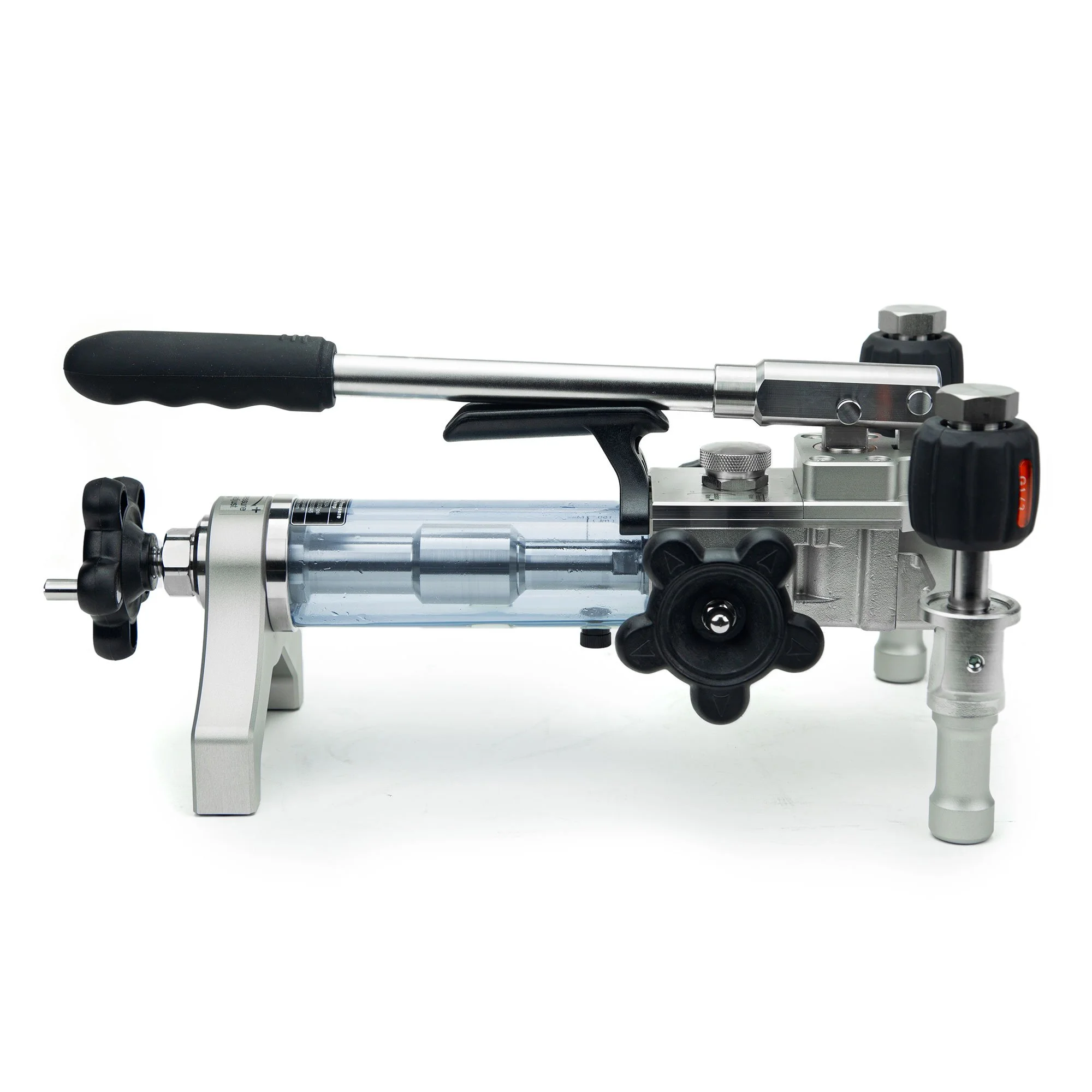

Additel 928A Hydraulic Pressure Test Pump
Pressurize large-volume workloads
Generate to 15,000 psi (1,000 bar) pressure
Portable, only 8.6 lb (3.9 kg)
Increase and decrease pressure smoothly
Hand-tight quick connectors
Overview
The Additel 928A is a hand operated pump generating pressure to 15,000 psi. Its dual-piston system pairs a hand pump for filling large-volume workloads with a fine adjustment for smooth pressure control, and an isolation valve separates the calibration volume from the hand pump check valve, the usual source of leaks, so measurements stay stable and maintenance stays low. Two hand-tight quick connectors need no PTFE tape or wrenches. An ideal comparison test pump for calibrating gauges, indicators, and transducers in the field or laboratory. Corrosion resistant (928AC) and water service (928AW) versions are available.
Available configurations. Process Connection: 1/4 BSP, 1/2 BSP, M20x1.5, 1/4 NPT, 1/2 NPT. Configuration: Pump only, Set (with accessories).
Base model ADT928A. Each configuration has its own Additel part number, shown as the SKU on your order.
Accessories
Mineral oil
O-ring

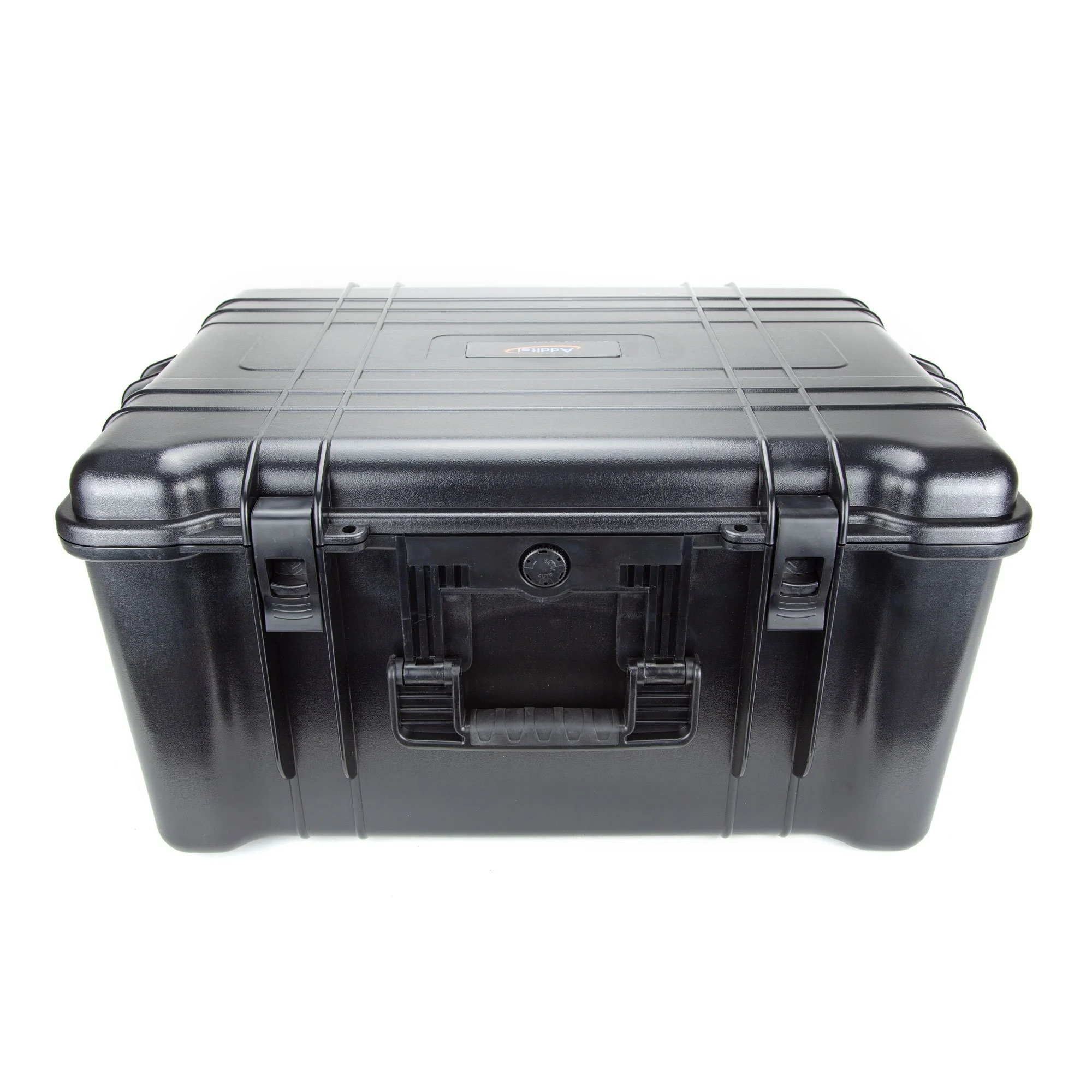

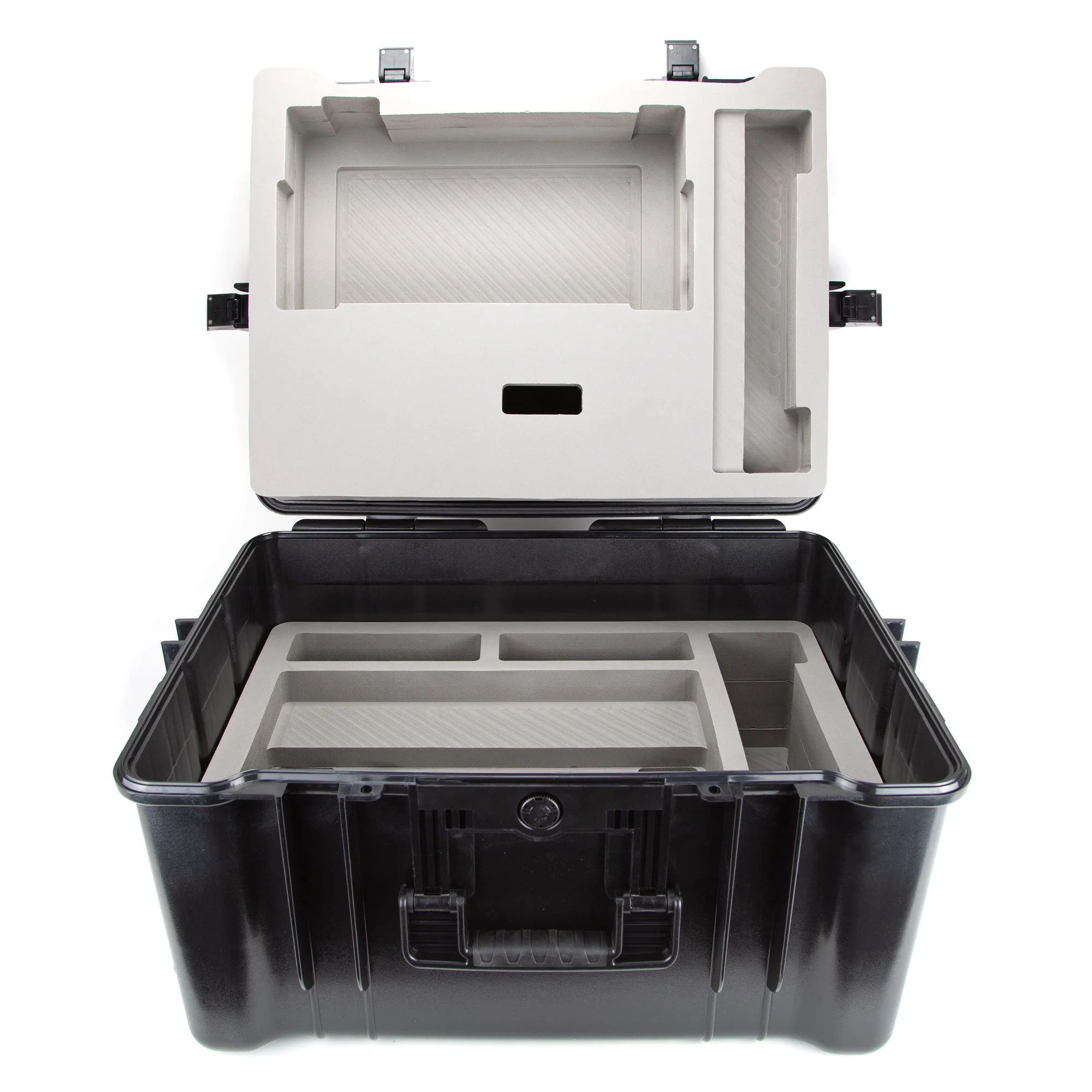

Carrying case
