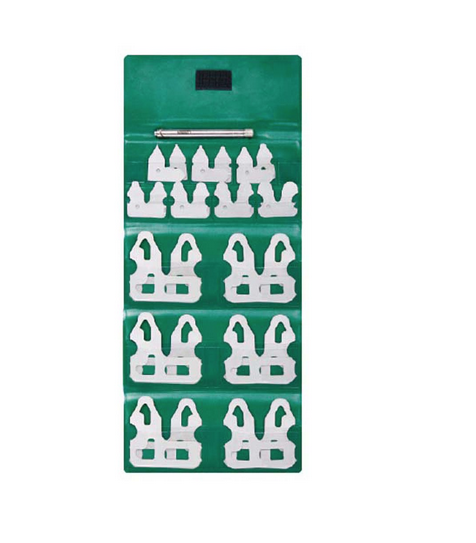

These radius gauge sets quickly check or inspect the size of the radius or fillet, whether confirming a known size or determining an unknown one. They are also used as a stencil on a workpiece in combination with a scriber and layout die to mark a radius that needs to be cut. These gauge sets are commonly used in woodworking and manufacturing applications.
RANGE: 1/64” ~1/2”
QUANTITY OF LEAVES: 25
ACCURACY: ±.002”
WITH HANDLE
EACH PIECE HAS 3 CONCAVE AND2 CONVEX GAUGING SURFACES
MADE OF MEDIUM CARBON STEEL
PART NUMBER: 4804-25E
MANUFACTURER: INSIZE
